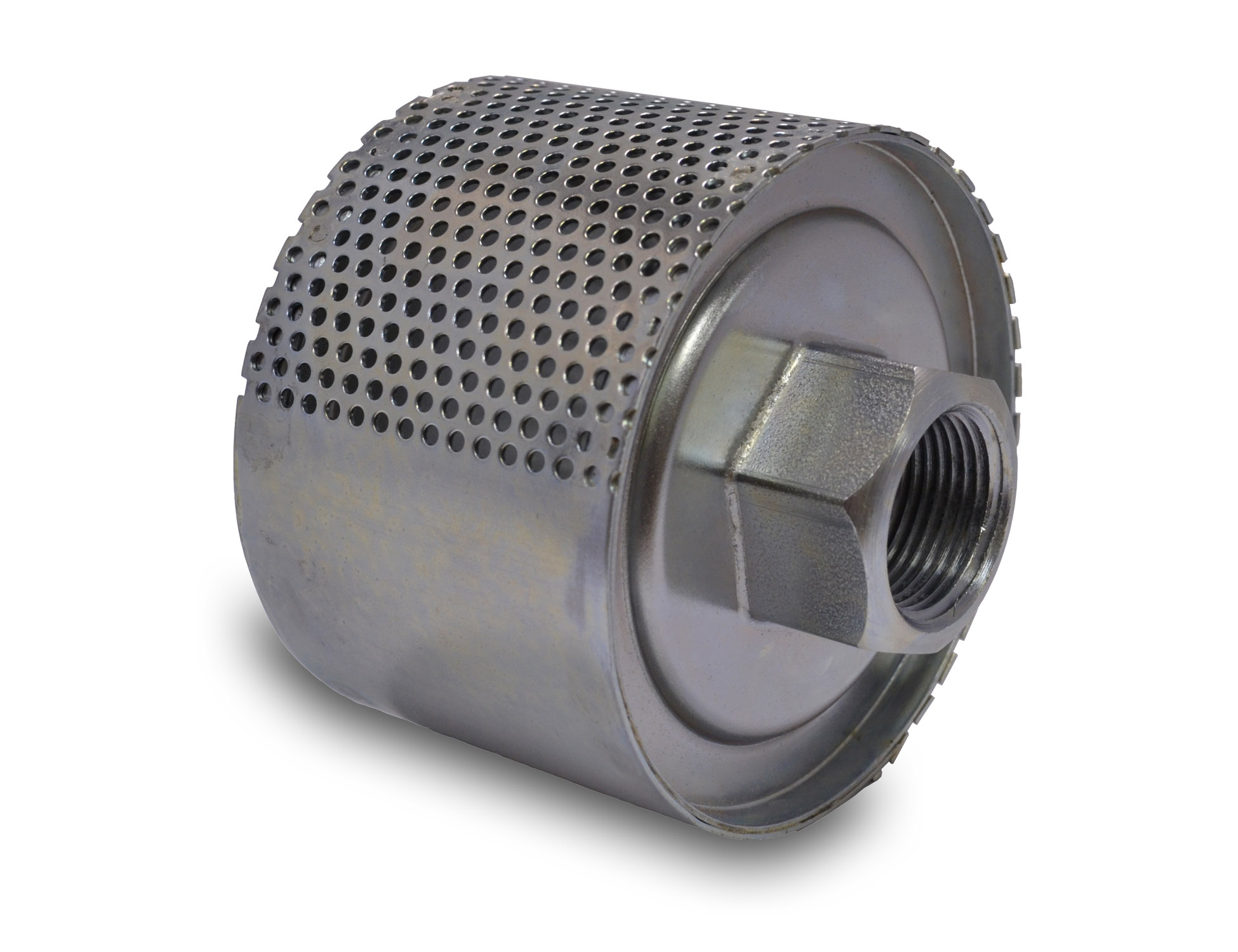

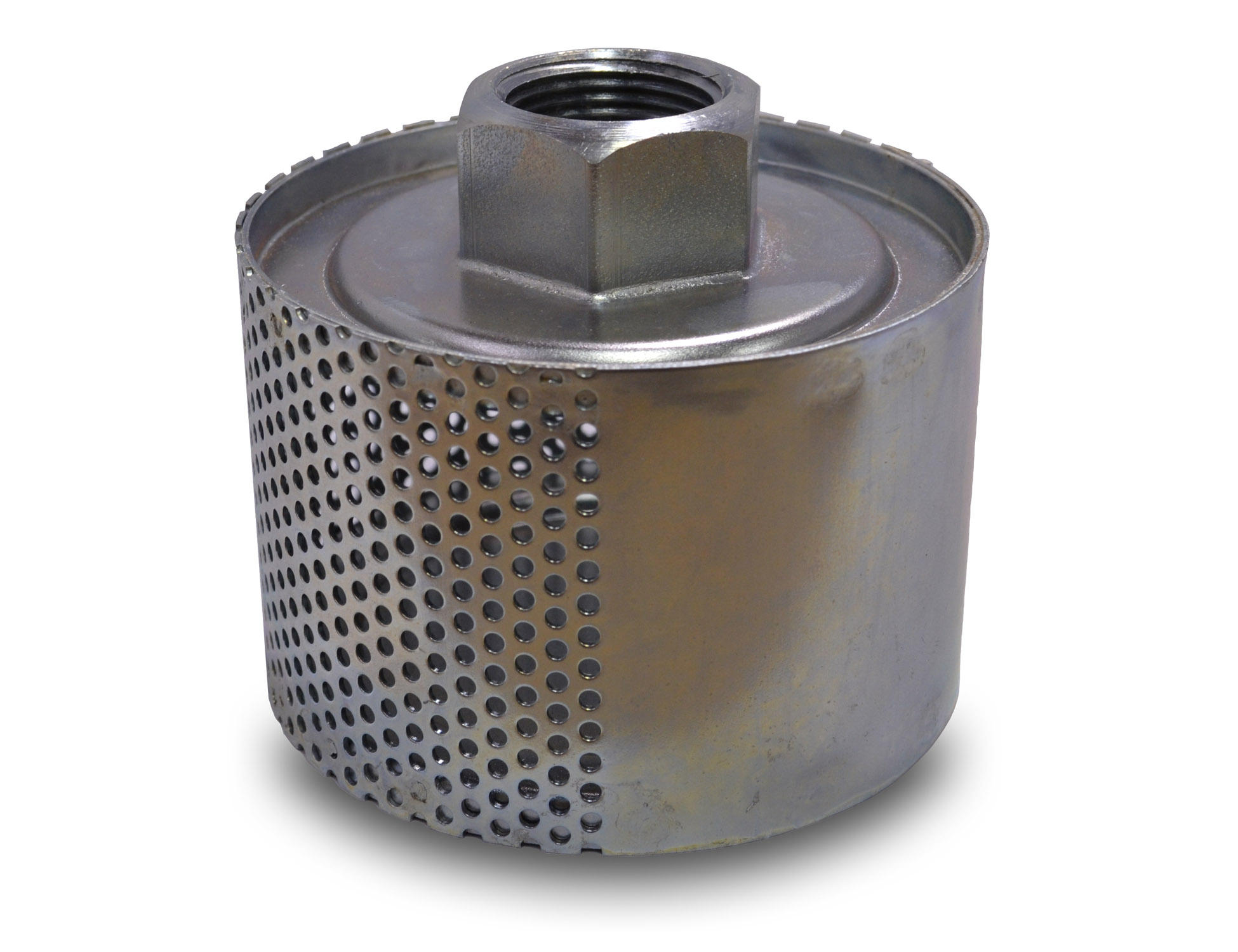

Return Line Diffusers

View Larger

Additional Product Information

Return Line Diffusers are an economical and highly effective way to reduce aeration, foaming, turbulence and noise caused by return lines.  Baffles can usually be eliminated, provided that the holes in the diffuser are positioned away from the pump suction inlet and below the oil level.

Standard Features:

  • Two concentric steel tubes with inner spaced holes
  • Max working pressure 290 PSI (20 bar)
  • Working temperature -13°F to 230°F (-25°C to 110°C)

Standard Material:

  • Zinc plated steel
