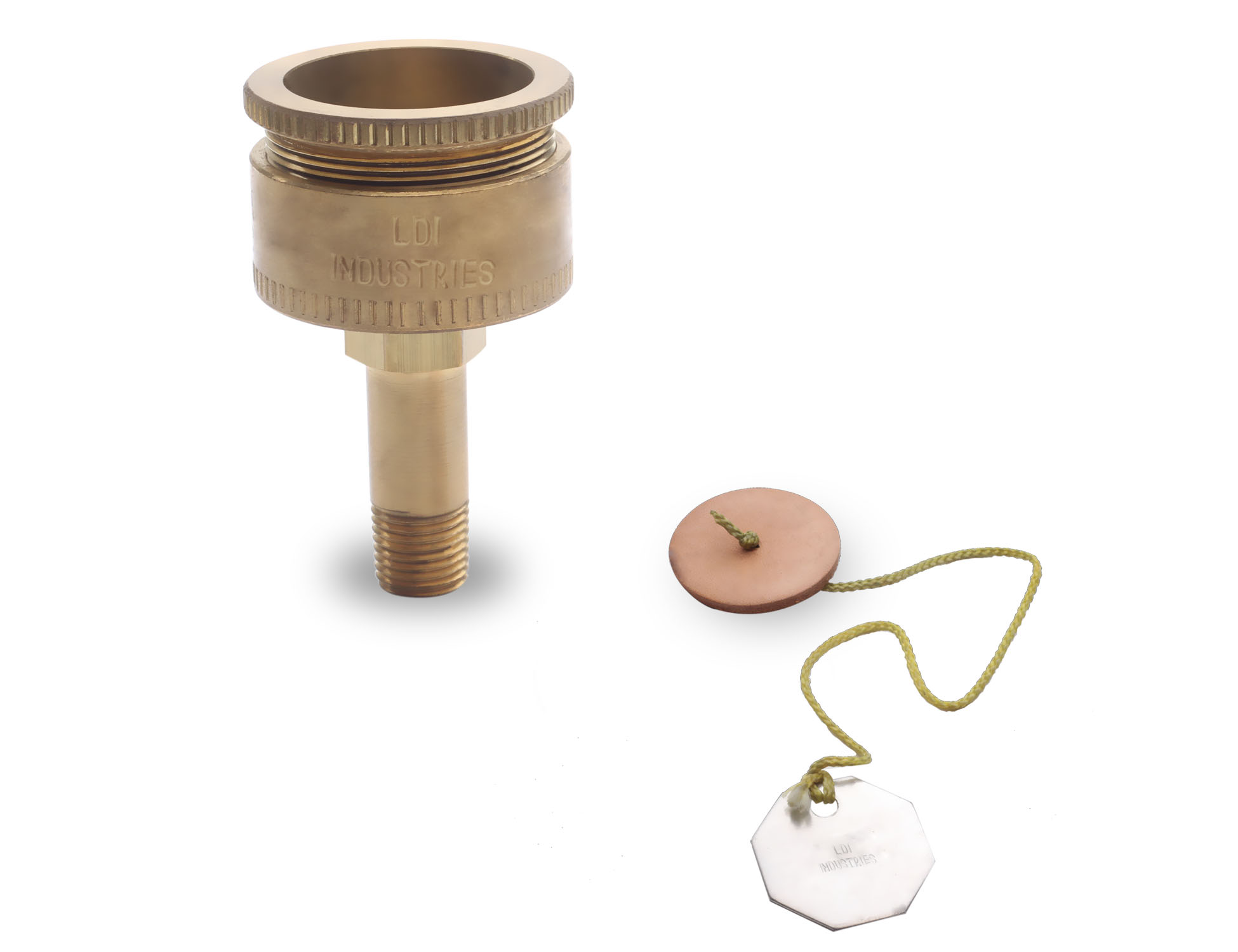

Grease Cartridge Adapter

View Larger

Additional Product Information

Grease Cartridge Adapters are designed to take advantage of readily available grease cartridges. These cartridges are available in most commonly used NLGI grades at the retail or wholesale level. These brass adapters are ideally suited for operation with LDI's Precision Metering Pumps PMP100 (air operated)  and PMP200 (motor operated).

Standard Features:

  • GCA100 Adapts the nominal 3 ounce (85g) standard cartridge size 1.31 (33.27mm) dia x 6.00 (152.40mm) long
  • GCA200 Adapts the nominal 14 ounce (397g) standard cartridge size 2.12 (53.85mm) dia x 9.00 (228.60mm) long
  • 1/4 inch NPTF stud end

Standard Materials:

  • Brass construction
  • Buna N seals

Temperature Rating

  • Maximum working temperature up to 120°F (48°C)
