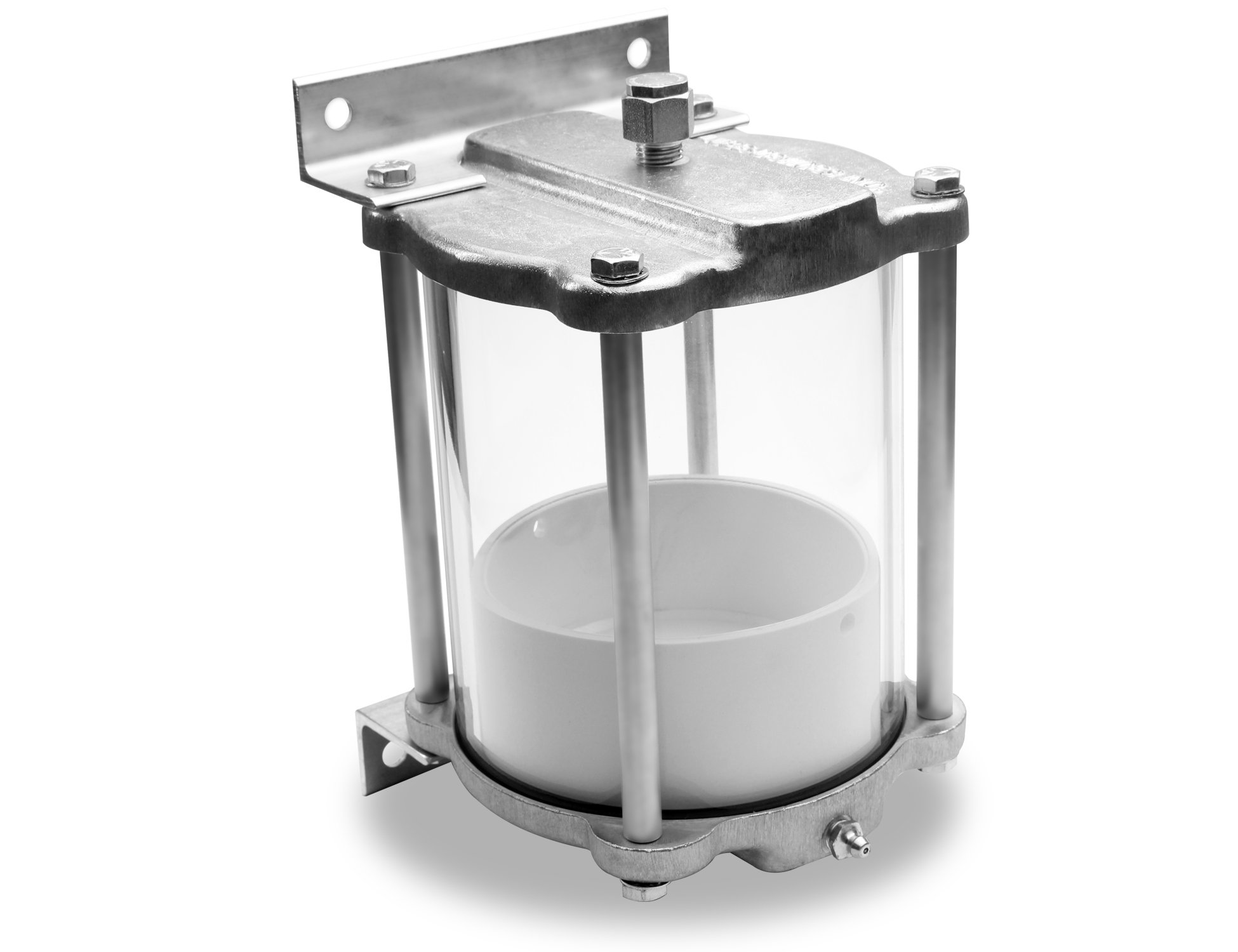

Grease Reservoirs

View Larger

Additional Product Information

Grease Reservoirs are ideal for supplying positive displacement pumps such as the PMP100 or PMP200 Precision Metering Pumps when larger capacities are required than offered by the GCA100 or GCA200 Grease Cartridge Adapters. These reservoirs feature a conveniently located grease fitting for filling, an internal follower piston to prevent air passing through the grease to the outlet and a large outlet to minimize restriction when connecting to a pump. Top and bottom mounting brackets minimize installation time. The reservoir must be mounted vertically with the outlet down and must not be pressurized on the grease side or the vent side.

Standard Features:

  • 1/2 inch NPTF output port
  • 40 micron air filter vent to minimize contamination
  • Full 360° visual check of the grease level
  • Mounting brackets feature (4) .38 inch diameter mounting holes

Standard Materials:

  • Aluminum construction
  • Buna N seals
  • Break resistant, colorless, transparent acrylic bowl





Temperature & Pressure Ratings

  • Maximum working temperature up to 160°F (71°C)
  • Working pressure is from atmospheric to minus 29 InHg (737mmHg)
