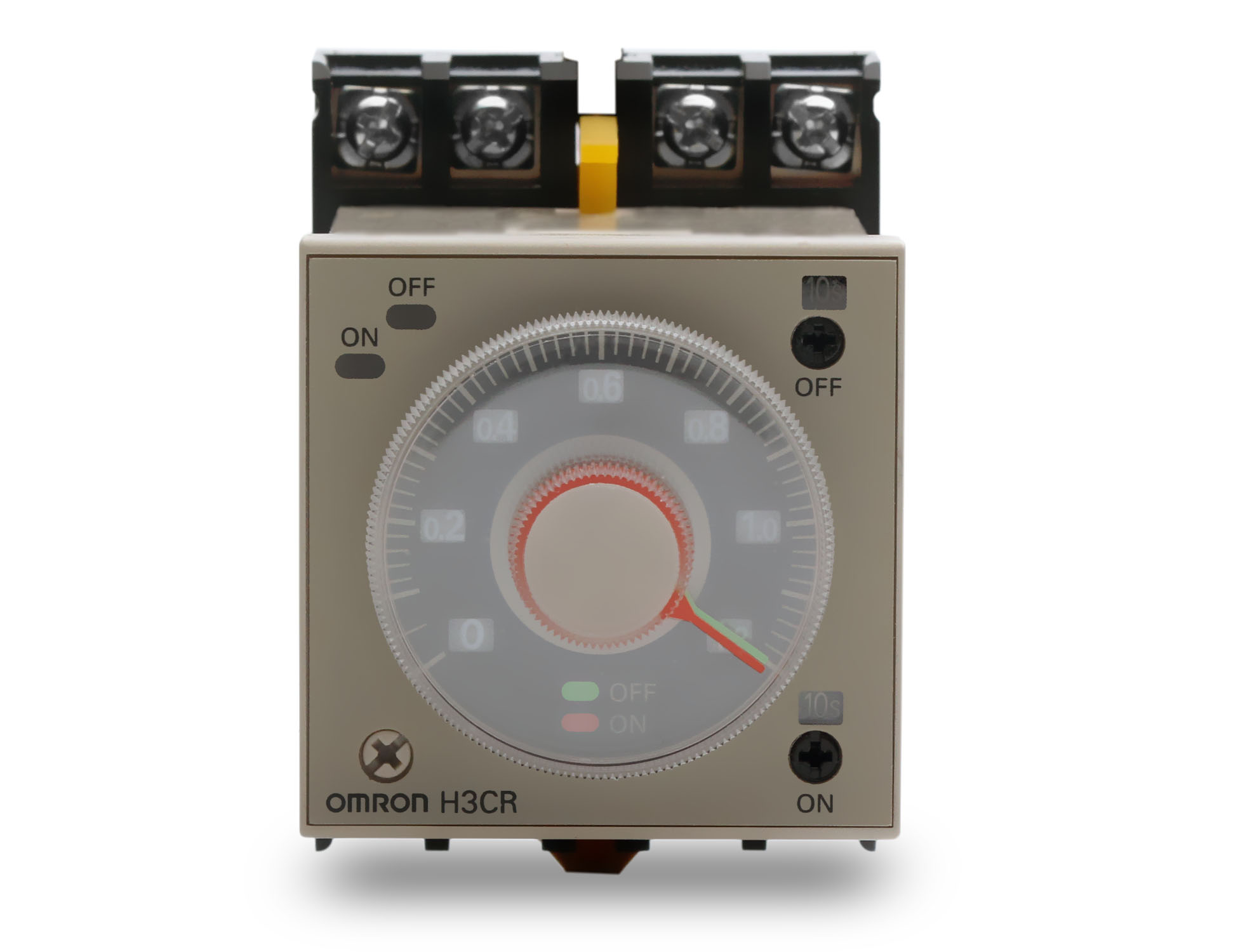

Repeat Cycle Timer

View Larger

Additional Product Information

This versatile timer is ideal for controlling the 3-Way Normally Closed Air Solenoid Valve(LDI Part No:832160) used to activate PMP100 when a PLC, touch activated switch, photo cell or proximity sensor are not available.

Standard Features:

  • "On time" setting energizes the solenoid valve which activates the PMP100.
  • "Off time" setting de-energizes the solenoid valve which allows the PMP100 to reset for the next cycle and controls when that next cycle will occur.
  • Will accommodate most industrial applications.
  • Can be wired through a relay so it is only active when the "machine" to be lubricated by the PMP100 is actually running; or, it can be wired uninterrupted for continual operation.

Standard Material:

  • Molded plastic
  • Screw terminals
  • Operating instructions included
  • Mounting hardware not furnished
  • 8-Pin mounting base
  • Recommended for use with PMP100 grease applications



Operating Conditions

  • For operation on 100 to 240V, 60Hz, 1Ph
  • Output DPDT rated 5A max @ 240V, 60Hz, 1Ph
  • Independently adjustable on time & off time by multiple ranges of 1.20 seconds to 300 hours
  • 0.10 to 10.10 minute adjustable off time
  • +14°F(-10°C) to +131°F(+55°C) operating temperature
