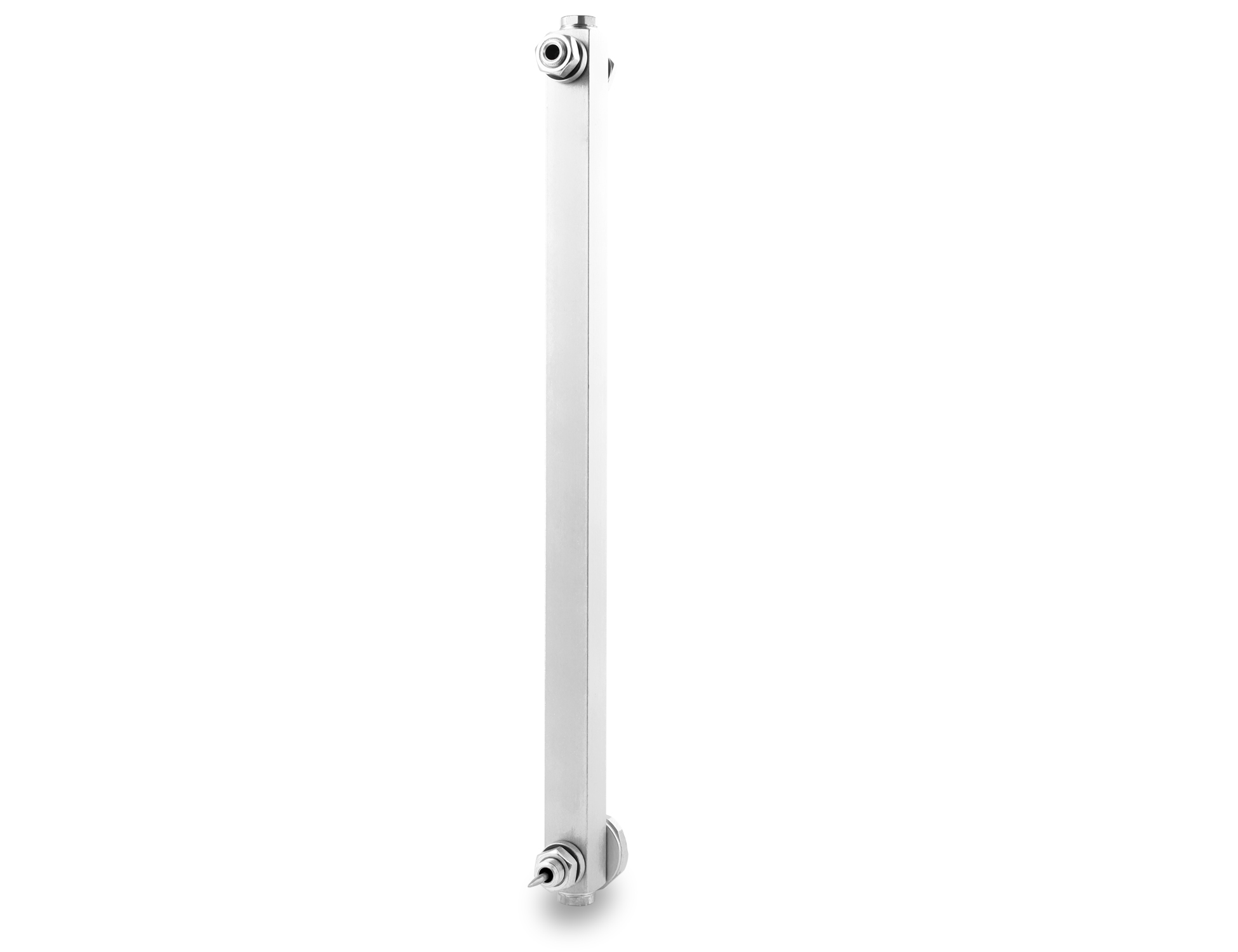

G615 Series Front Mount Redline Sight Gage - Front Viewing With Dial Thermometer

View Larger

The G615 Series front mount closed circuit sight gages provide front viewing of the fluid level clearly delineated by a redline on white background integral to the glass sight all secured within an aluminum body. HIGH-LOW markings are stamped into the aluminum body and a wetted dial thermometer provides direct reading of the fluid temperature.


Standard Features:

  • Centerline lengths from 3 to 12 inches
  • Front mount
  • .90 inch SQ body machined from extruded aluminum bar stock
  • Fluid level visible from front of gage (.50 inches wide)
  • Viewing enhanced by redline on white background integral to sight glass
  • HIGH-LOW markings on aluminum body
  • 1.38 inch diameter dual scale dial thermometer, 50° to 300°F and 10° to 150°C
  • 1/2-20UNF mounting studs accommodate reservoir wall thicknesses up to .62 inches
  • Suitable for use with most hydraulic and machine lubricating oils

Standard Materials:

  • Aluminum construction
  • Buna N seals
  • Borosilicate glass sight
  • Zinc plated, steel hex nuts

Caution:

  • Not recommended for use with steam, acidic fluids, caustic fluids and volatile fluids.
  • If aluminum construction is selected for a water application, anodizing is recommended.
  • Reservoir must be drained to remove dial thermometer or loss of fluid will occur.

Product Options

Common Modifications Available

  • Body Material: Brass, Stainless Steel or Carbon Steel
  • Seal Material: Butyl, Fluorocarbon (Viton®), Ethylene Propylene (EPDM) or Neoprene
  • Centerline lengths

Custom Modifications Available

  • Sight Options: Polycarbonate or Clear Borosilicate (Ball Float Indicator)
  • Surface Treatments: Clear/Color Anodize, Zinc, Nickel or Chrome Plate
  • Fluid Level Markings: Custom Text, ISO Symbols or No Markings
  • Mounting Bolt Threads: 1/2-13UNC, M12x1.75 or M10x1.50
  • Viewing Direction: Right, Left, Front or Any Combination, Corner Viewing
  • Backup conical sleeve (for use with cylindrical reservoir)

Minimum quantities may apply.
