G613 Series Front Mount Rigid Nylon Sight Gage - 360° Viewing

View Larger

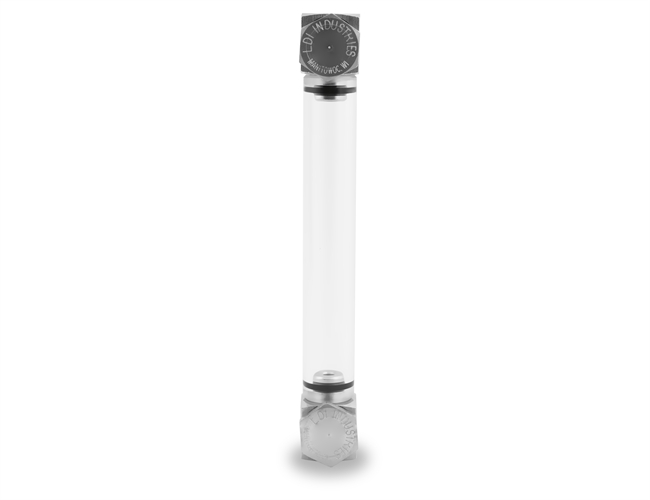

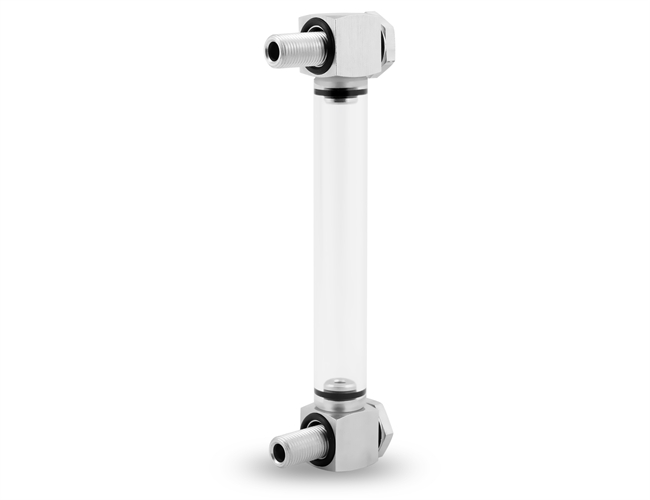

The G613 Series front mount closed circuit sight gage is mounted securely with end blocks made from aluminum.  These end blocks are connected with a clear,  rigid tubular nylon sight providing 360° viewing of the fluid level.  The nylon sight combines rigidity with break resistant toughness.


Standard Features:

  • Centerline lengths from 3 to 12 inches
  • Front mount
  • .88 inch square end blocks machined from aluminum bar stock
  • .81 inch diameter tubular sight
  • 360° of viewing fluid level
  • 1/2-20UNF mounting studs accommodate reservoir wall thicknesses up to .58 inches
  • Suitable for use with most hydraulic and machine lubricating oils

Standard Materials:

  • Aluminum end blocks and mounting bolts
  • Nylon tubular sight
  • Buna N seals

Caution:

  • Not recommended for use with diesel fuel, gasoline, ethylene glycol (antifreeze), polyglycols, ethyl alcohol, methyl alcohol, methyl ethyl ketone(MEK), acetone, isopropanol, water exceeding 194°F (90°C), steam, acidic, caustic and volatile fluids



Temperature & Pressure Ratings

  • 225°F (107°C) maximum operating temperature
  • 125 psi (862 kPa) maximum working pressure at 70°F (21°C)

Product Options

Common Modifications Available

  • Seal Material: Fluorocarbon (Viton®) or Ethylene Propylene (EPDM)
  • Centerline lengths [72 inch (1828 mm) maximum]

Custom Modifications Available

  • End blocks made from brass material
  • Seal Material: Butyl
  • Machined Fluid Level Lines
  • Mounting Bolt Threads: 1/2-13UNC, 3/8-24UNF, 3/8-16UNC, or M12x1.75

Minimum quantities may apply.

Related Products

The nylon style sight gage is also offered in other series to meet a wide range of applications.

If your application exceeds the capabilities of the nylon sight gages, consider metallic LDI products designed for viewing or monitoring fluid media.
