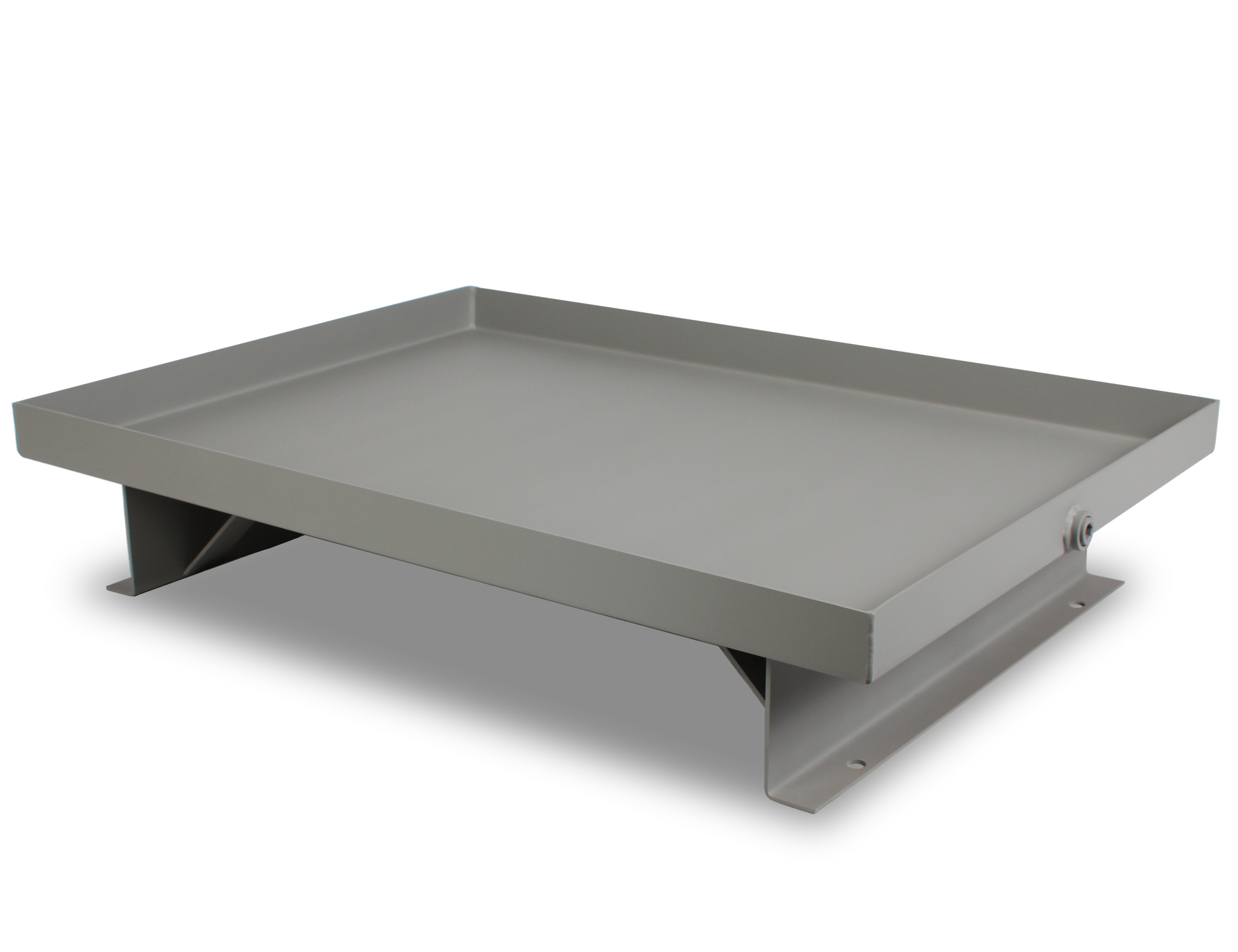

Containment Stand

View Larger

Containment stands with integral containment tray are an optional accessory to JIC type reservoirs to contain minor leaks or weapage from system components during normal operation. The stand feature provides for more convenient movement and placement of the system within the work place once assembled. Proper containment of fluids escaping from the system may help to limit contamination of the nearby environment and provide safer working conditions in areas otherwise negatively affected when exposed to the escaping fluid. Reservoirs are sold separately.


Standard Features:

  • Mate with JIC type reservoirs ranging in size from 10 to 400 gallons
  • Containment tray is elevated six inches above mounting surface
  • (1) 3/4 inch NPT drain port with plug
  • 2.50 inch high side walls
  • (4) .50 inch thick (1/2-13 tapped) mounting pads (shipped loose)
  • Prime painted LDI gray

Standard Materials:

  • Carbon steel construction

Product Options

Common Modifications Available

  • Unpainted (-UP)

Custom Modifications Available

  • Additional drain ports
  • L x W x H
  • Complete with custom reservoir
  • Top coat finish

Minimum quantities may apply.

Related Products

LDI also has stand alone containment trays to offer customers more flexibility in building their own systems.

Our capabilities in fabrications go beyond just reservoirs and sheet metal construction. Custom fabrication of brackets, frames and structures is also part of our business supported by our experience in design and manufacture of related products.
